This compact table-top reader unit has outstandingly high-speed processing to challenge the common misconception of CR.

Features

• High-speed processing
• Space-saving design
• Stable high-quality images



System Configuration

All-in-one workstation

FCR PRIMA Console and FCRView are an all-in-one viewers that turns your desktop into a multi-function workstation for all your radiographic imaging needs. You can initiate exposures, process and print your studies and backup patient information all within a single unit.



DRYPIX Lite

Outstanding performance, remarkable efficiency and superb quality satisfy your medical imaging needs.

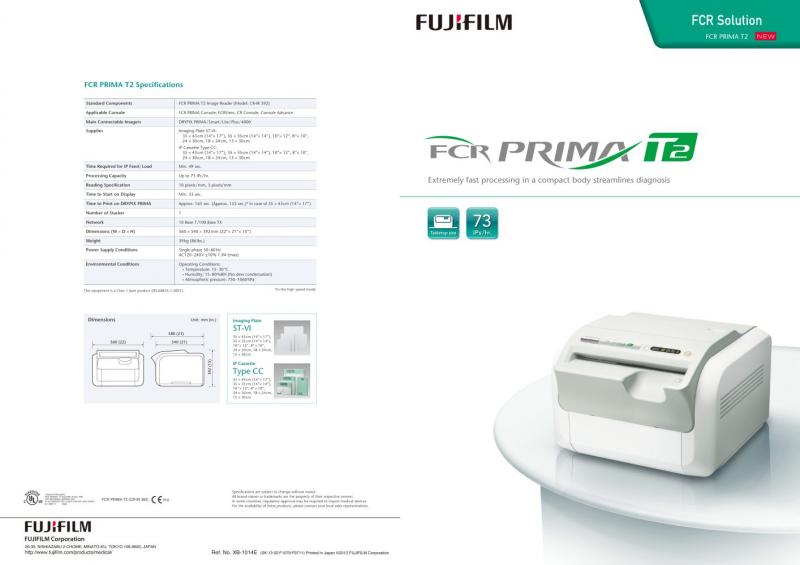

Specifications

High-speed processing

FCR PRIMA T2 is a table-top reader unit which boasts a world-class high processing speed of 73 IPs/hour.In the high speed mode (5 pixels/mm), throughput is enhanced almost 70% compared with FCR PRIMA T (only for IPs of 14″ × 17″ and 14″ × 14″ ). As with all Fujifilm equipment FCR PRIMA T2 is easy to operate. It will help reduce patient waiting time and greatly increase the efficiency of examination workflow.

Space-saving design

FCR PRIMA T2, with its light and compact table top design, can be placed on a desk, shelf or anywhere space is limited. As this is a fully digital reader, neither a darkroom nor automatic processor is required. FCR PRIMA T2 can always be installed in the space formally used by a chemistry based processor.



Stable high-quality images

Although this is a compact machine its excellent image quality is the same as that produced by the rest of the FCR range. Image Intelligence™, Fujifilm's proprietary image processing technology, enhances image contrast and sharpness, without any deterioration of details. FCR PRIMA T2 supports accurate diagnosis by offering stable and optimized image quality.

• MFP (Multi-Frequency Procesing)*

Enhances FCR images. All diagnostic scopes will be enhanced except for noise.

• * Optional Software

• FNC (Flexible Noise Control)

Provides a non-grainy image by mainly isolating and suppressing the noise for the signal

• GPR (Grid Pattern Removal)

Removes the stationary grid patterns thus preventing Moiré from being generated resulting in easier diagnosis.

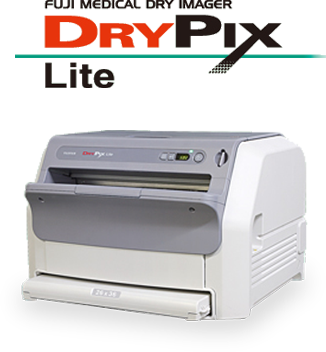

DRYPIX Lite



 Features:

• A new concept tabletop dry imager
• Supports multiple film size
• Expandable to two magazines





Options

• Optional sheet-feeder unit (*Supply magazine not included [Purchase separately] )
• Vehicle mounting kit
• Cart (*Cart does not conform to UL requirements.)
• Large magazine
• Small magazine

Note

• DRYPIX Lite doesn't come standard with supply magazine. Purchase magazine accordingly.
• Large magazine can only accommodate 35 × 43 (14 × 17) film size.
• Small magazine can accommodate either 26 × 36, 25 × 30 (10 × 12) or 20 × 25 (8 × 10) film size.
• To set up the film size to your desired size requires the support of our servicing personnel.
• Once the magazine is set to a film size, you cannot change it to a different one by yourself.
• Film sizes indicated above required the respective magazines, as desired.
